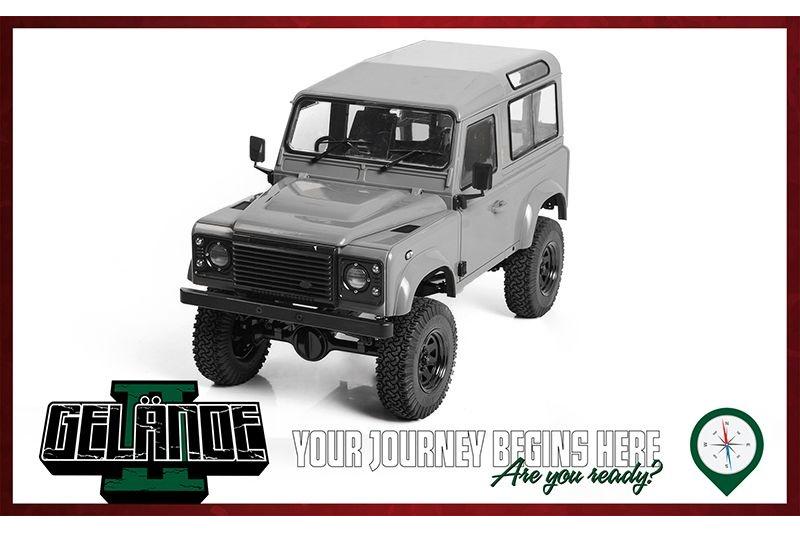

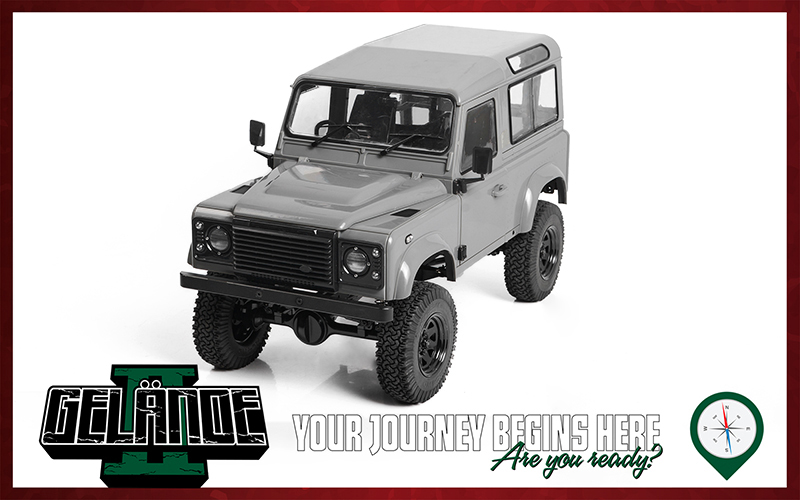

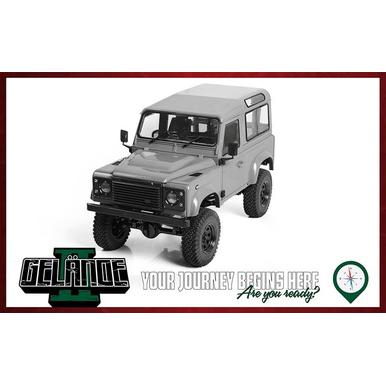

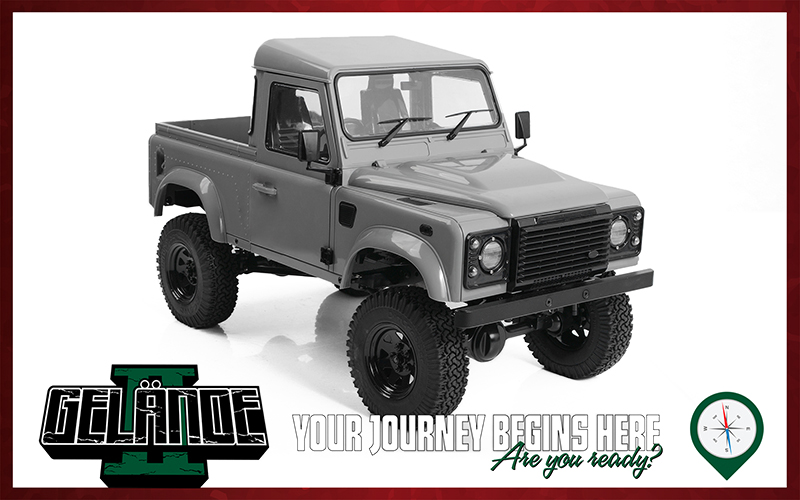

RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set

RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set
Muss für Sie bestellt werden !

Ausverkauft

Gelande II Truck Kit mit LR Defender D90 Hart-Karo-Set

Bau dir deinen eigenen Landrover !

RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set

This

is the new licensed RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set. These have been Officially Licensed by Land Rover and

are only available from RC4WD and our Dealers.

Experience the versatility and advanced design of the Gelande

II for yourself. Packed full of capability, the Gelande II is ready for

any challenging condition. Put your off-road driving to the test and see

why the Gelande II can easily maneuver extreme descents and climb with

ease.
The Gelande II is built with quality

materials and craftsmanship like the R3 single speed transmission

providing power down to the transfer case and out to the Yota II Axles.
The Gelande

II comes with a 4 link rear and 3 link panhard bar suspension as a

standard feature. The chassis mounted servo is out of view for a more

scale appearance.
The Gelande II is completely

versatile and can pull off many looks and styles. With the countless

options available, RC4WD let's you customize your Gelande II exactly how

you want without sacrificing performance. From emergency and expedition

vehicles to daily drivers and hard core rock climbing rigs, the core of

the Gelande II is built for the true off-road enthusiast!

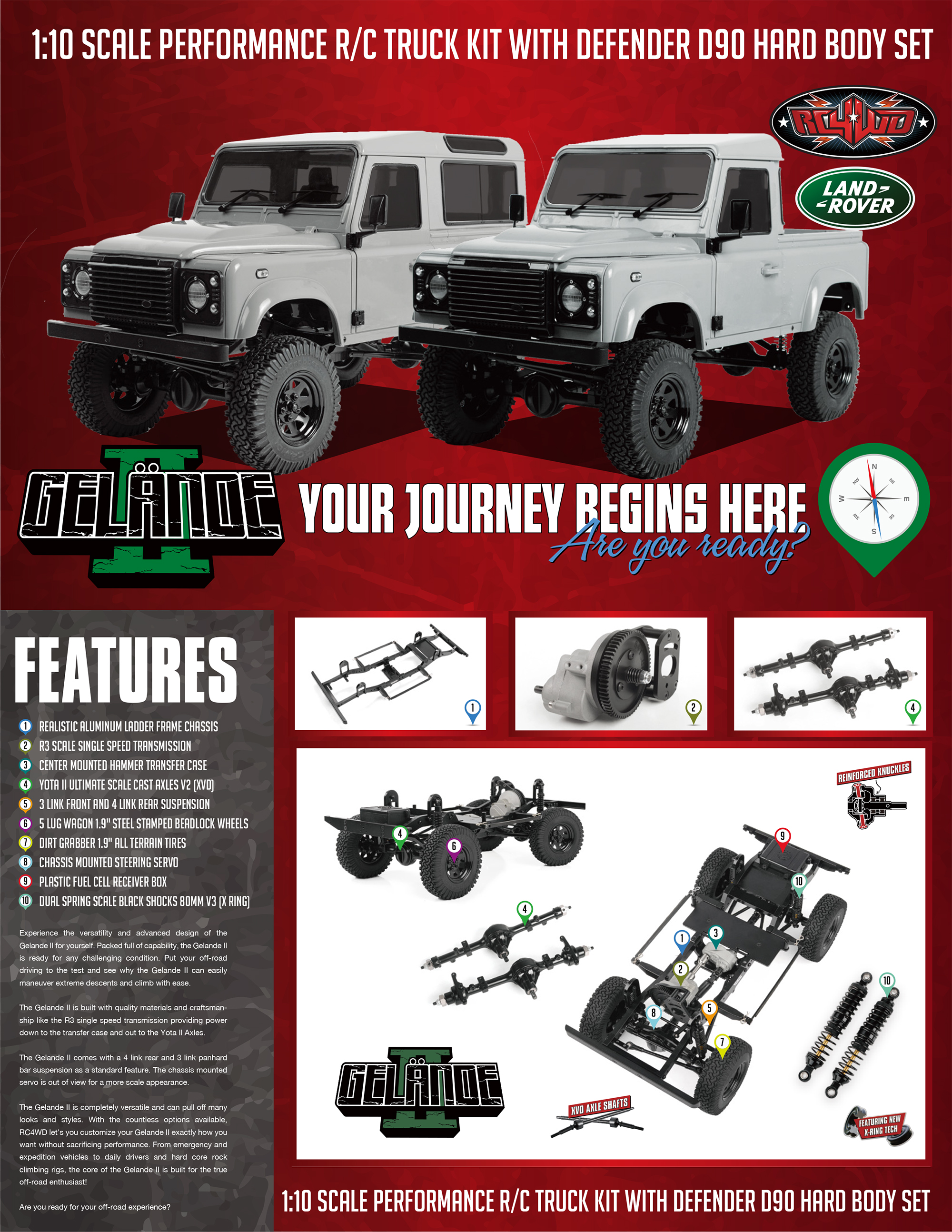

Realistic Aluminum Ladder Frame ChassisR3 Single Speed TransmissionCenter Mounted Realistic 4x4 Transfer CaseYota II Ultimate Scale Cast Axles3 Link Front and 4 Link Rear Suspension5 Lug Wagon 1.9" Steel Stamped Beadlock WheelsDirt Grabber 1.9" All Terrain TiresChassis Mounted Steering ServoPlastic Fuel Cell Receiver BoxDual Spring Scale Black Shocks 80mm V3 (X-Ring)



Hammer Transfer CaseRatio: 1.47:1Gears: Wide 0.8 Mod Hardened Steel GearsFeatures: 8 Bearings, Cast Casing, Hardened Gears
R3 Single Speed TransmissionRatios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Cast Yota II AxlesRatio: 15/40 = 2.67:1Width at Hex: 178.2mm
G2 SuspensionDouble Triangulated 4 Link Rear Suspension3 Link Suspension with Panhard Bar
Shock AbsorbersDual Spring 80mm Shocks: Can be Oil Filled
WheelsType: 1.9'' 5 Lug Wagon WheelsHub: Pin TypeWidth: 25mmBack Spacing: 11mm
BumpersMachined Billet Aluminum, Lightweight
G2 Truck DimensionsWheelbase: 275mm (10.82")Width: 213mm (8.38")Height: 252mm (9.92")Ground Clearance: 58mm (2.28")Final Drive Ratio: 31.9:1Weight: 5.58Lbs / 2.533Kg

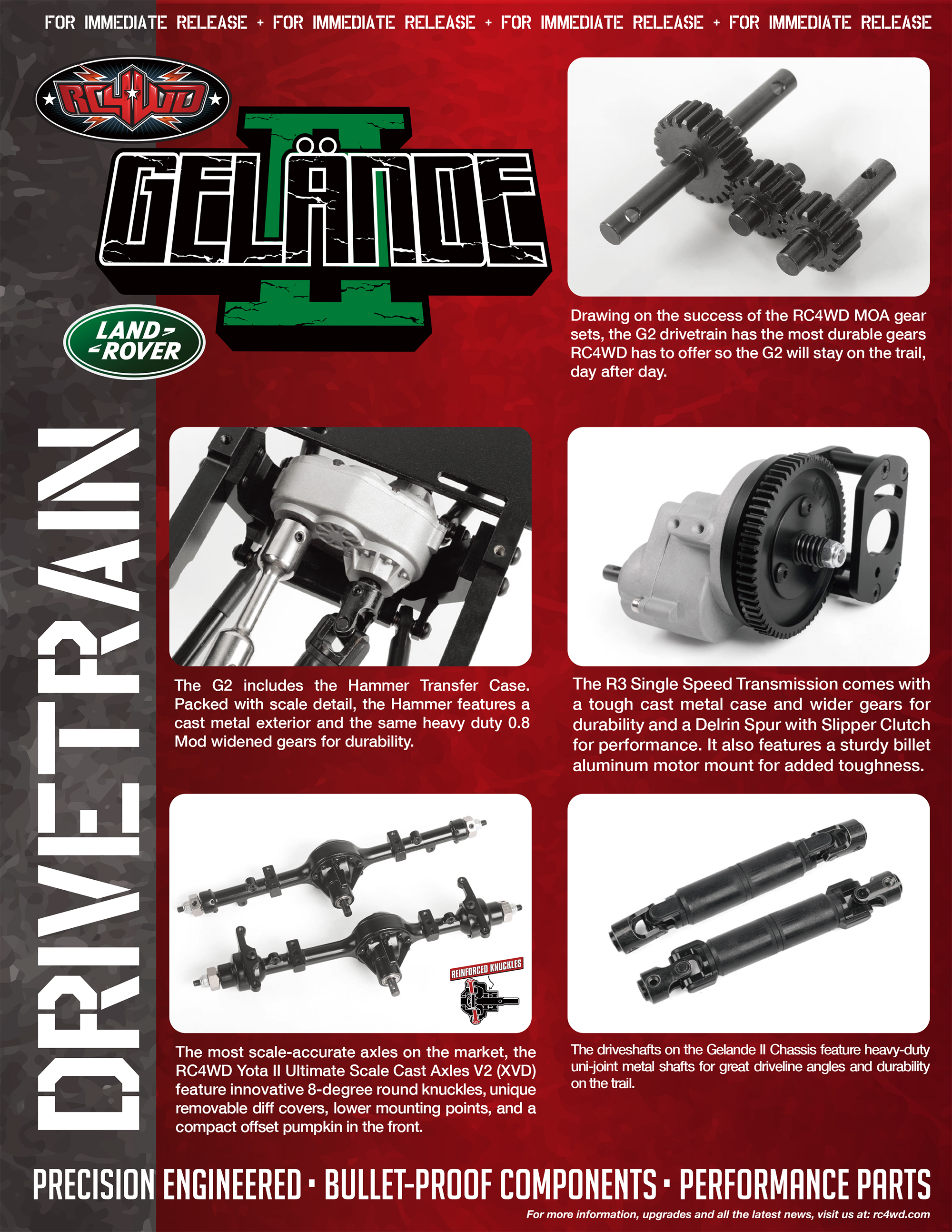

DRIVETRAIN

Drawing on the success of the

RC4WD MOA gear sets, the G2 drivetrain has the most durable gears RC4WD

has to offer so the G2 will stay on the trail, day after day.

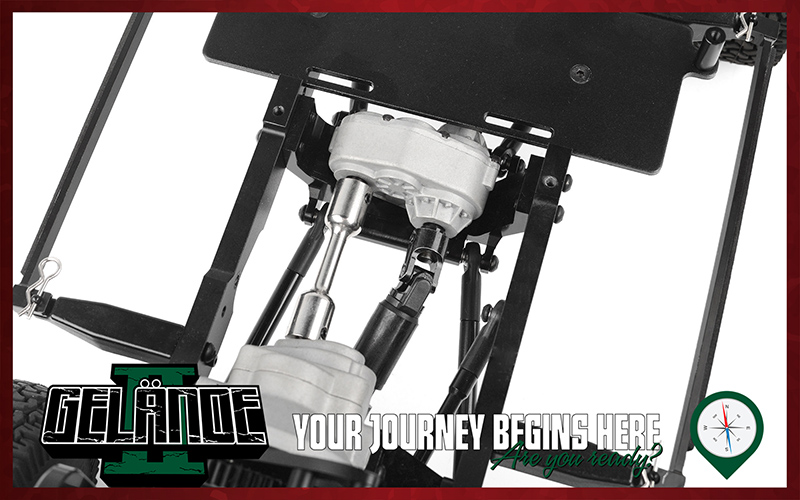

The

G2 includes the Hammer Transfer Case. Packed with scale detail, the

Hammer features a cast metal exterior and the same heavy duty 0.8 Mod

widened gears for durability.

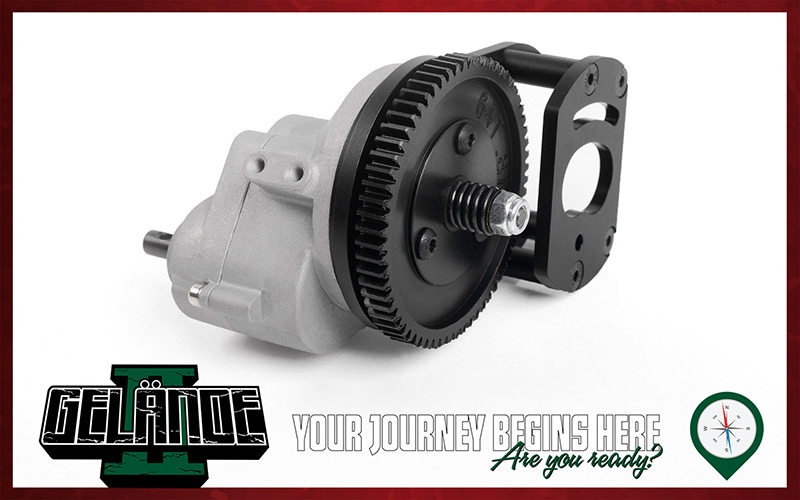

The R3 Single

Speed Transmission comes with a tough cast metal case and wider gears

for durability and a Delrin Spur with Slipper Clutch for performance. It

also features a sturdy billet aluminum motor mount for added toughness.
The most scale-accurate axles on the market, the

RC4WD Yota II Ultimate Scale Cast Axles V2 (XVD)

feature innovative 8-degree round knuckles, unique

removable diff covers, lower mounting points, and a

compact offset pumpkin in the front.
The

driveshafts on the Gelande II Chassis feature heavy-duty uni-joint metal

shafts for great driveline angles and durability on the trail.

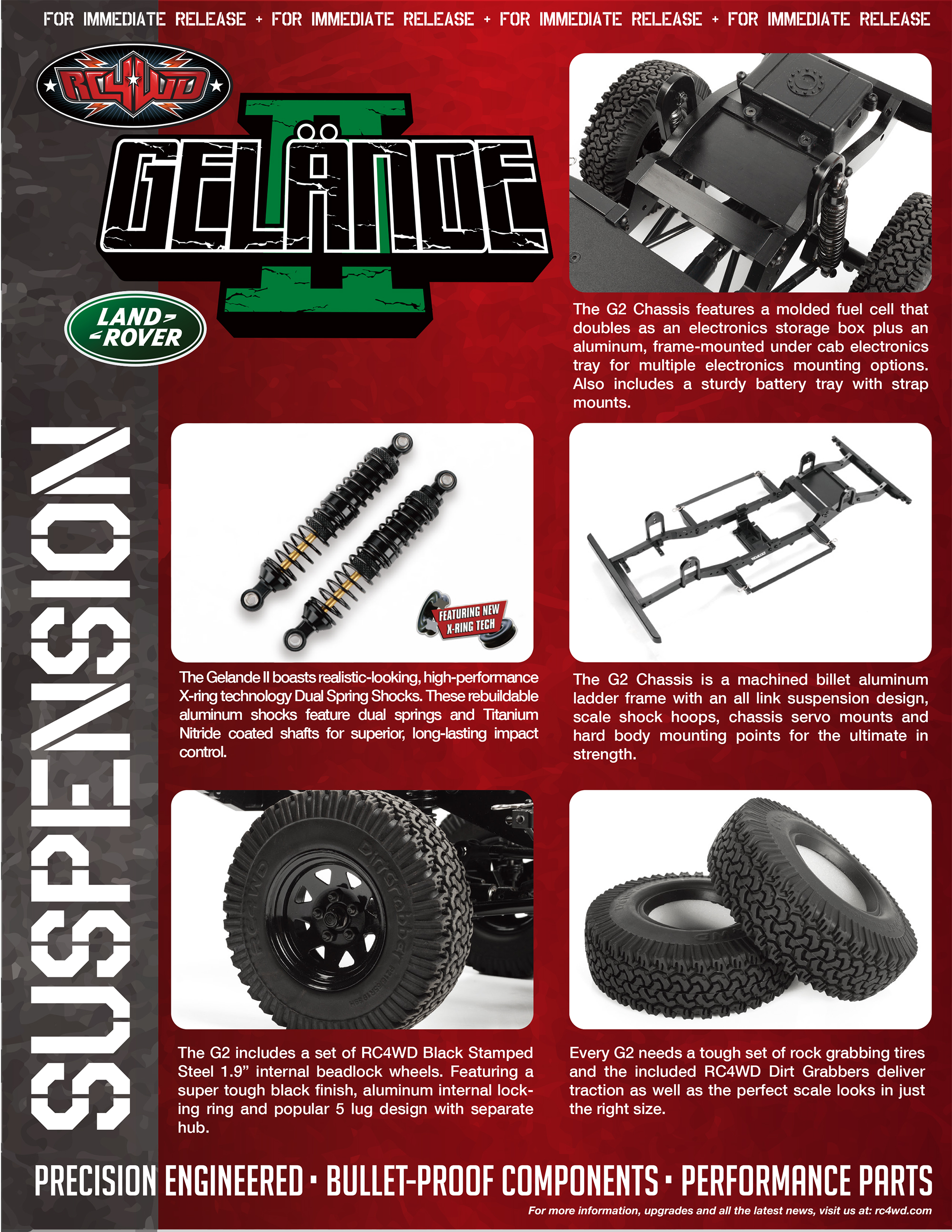

SUSPENSION
The G2 Chassis features a

molded fuel cell that doubles as an electronics storage box plus an

aluminum, frame-mounted under cab electronics tray for multiple

electronics mounting options. Also includes a sturdy battery tray with

strap mounts.
The Gelande II boasts

realistic-looking, high-performance X-ring technology Dual Spring

Shocks. These rebuildable aluminum shocks feature dual springs and

Titanium Nitride coated shafts for superior, long-lasting impact

control.

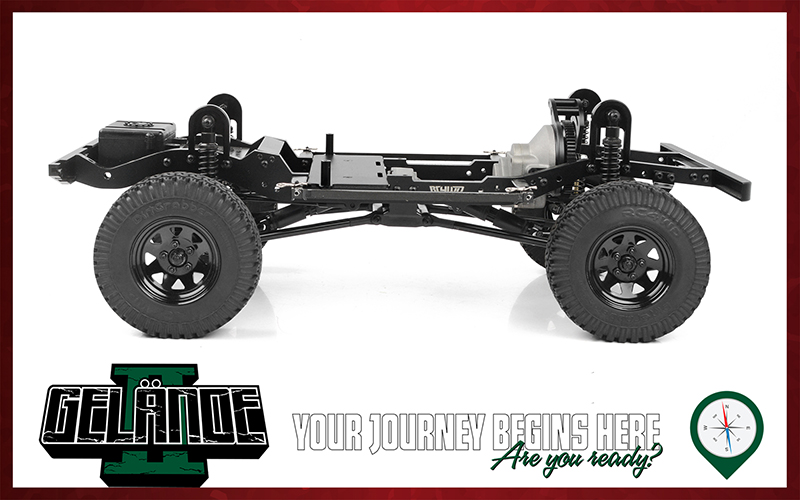

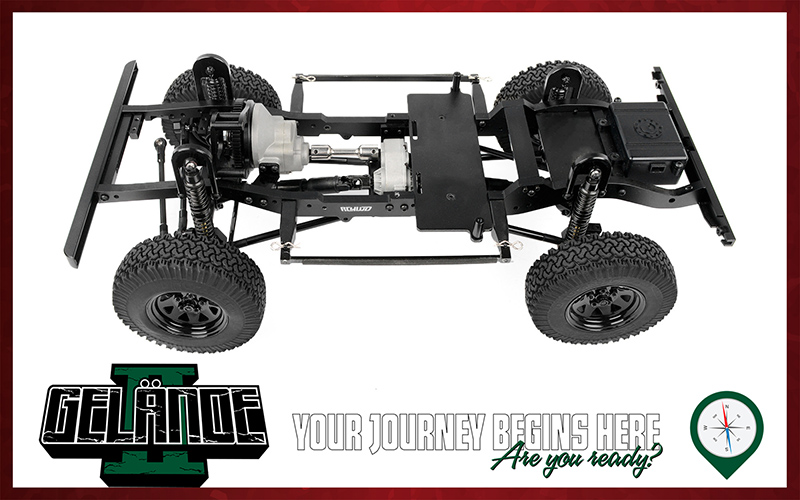

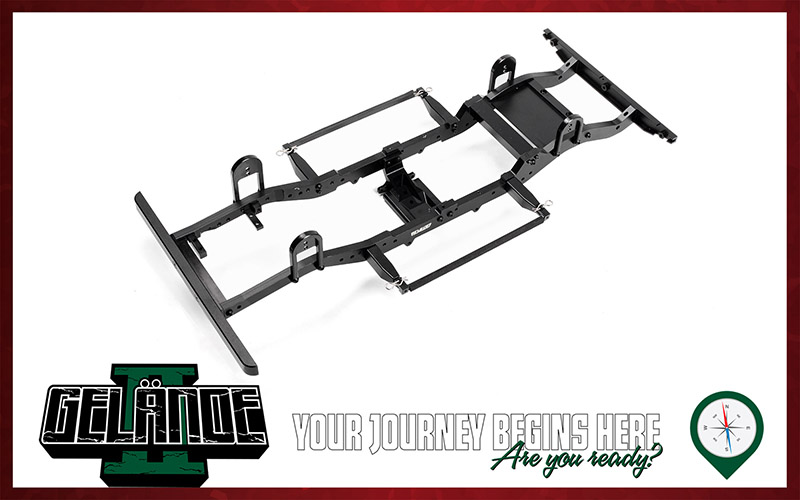

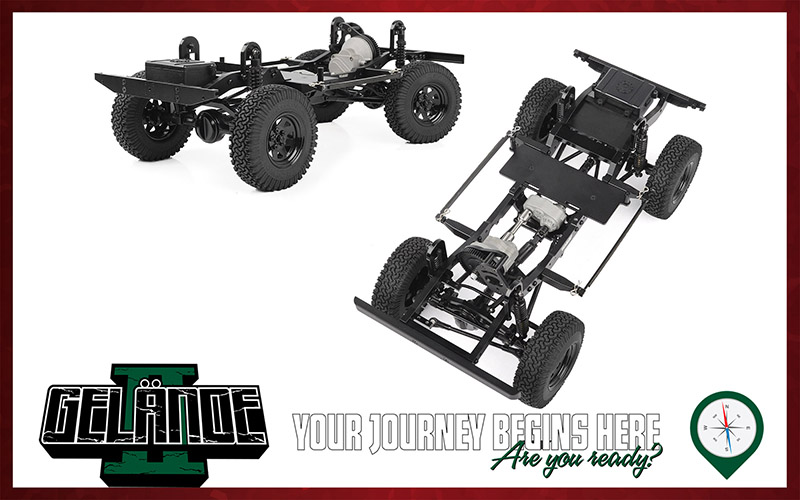

The G2 Chassis is a machined billet

aluminum ladder frame with an all link suspension design, scale shock

hoops, chassis servo mounts and hard body mounting points for the

ultimate in strength.
The G2 includes a set of

RC4WD Black Stamped Steel 1.9” internal beadlock wheels. Featuring a

super tough black finish, aluminum internal lock- ing ring and popular 5

lug design with separate hub.
Every G2 needs a

tough set of rock grabbing tires and the included RC4WD Dirt Grabbers

deliver traction as well as the perfect scale looks in just the right

size.




DETAILS

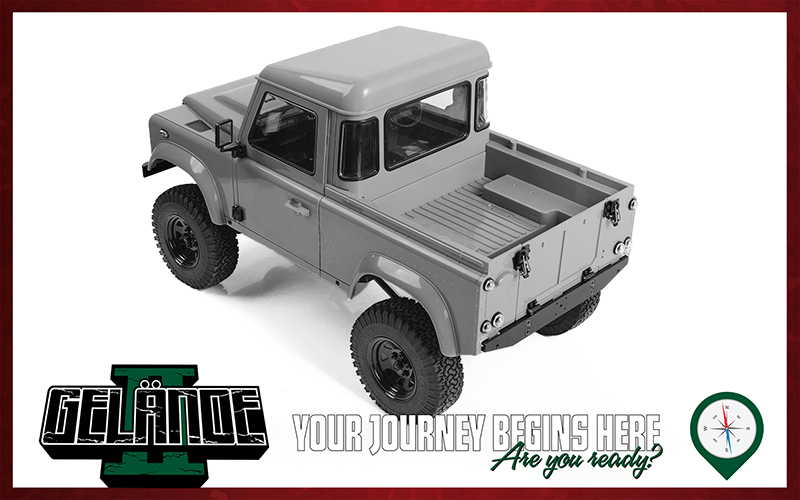

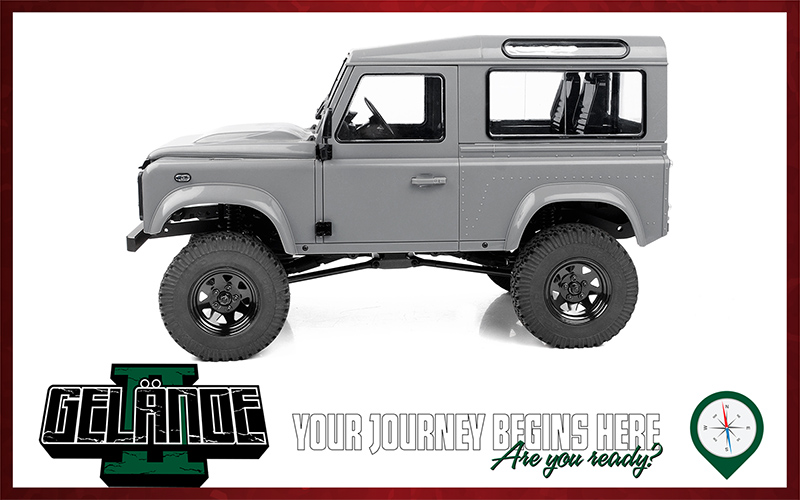

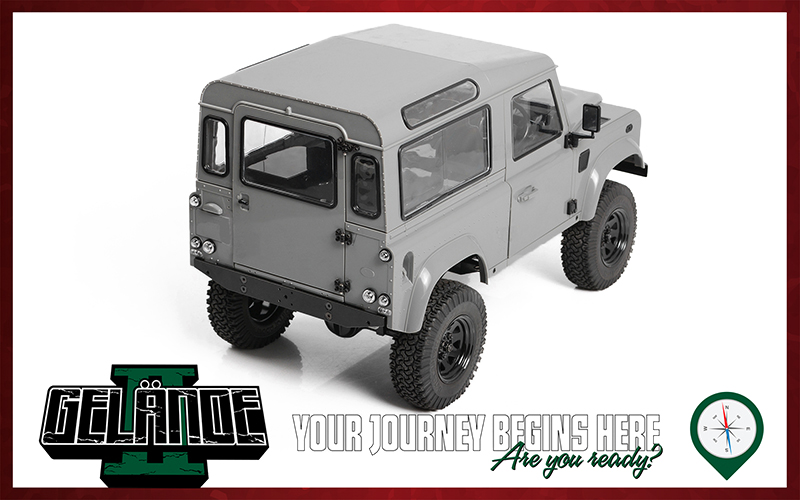

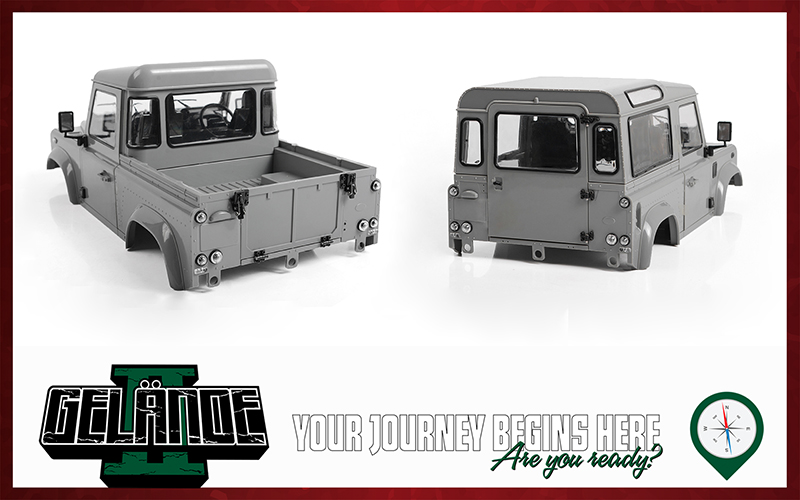

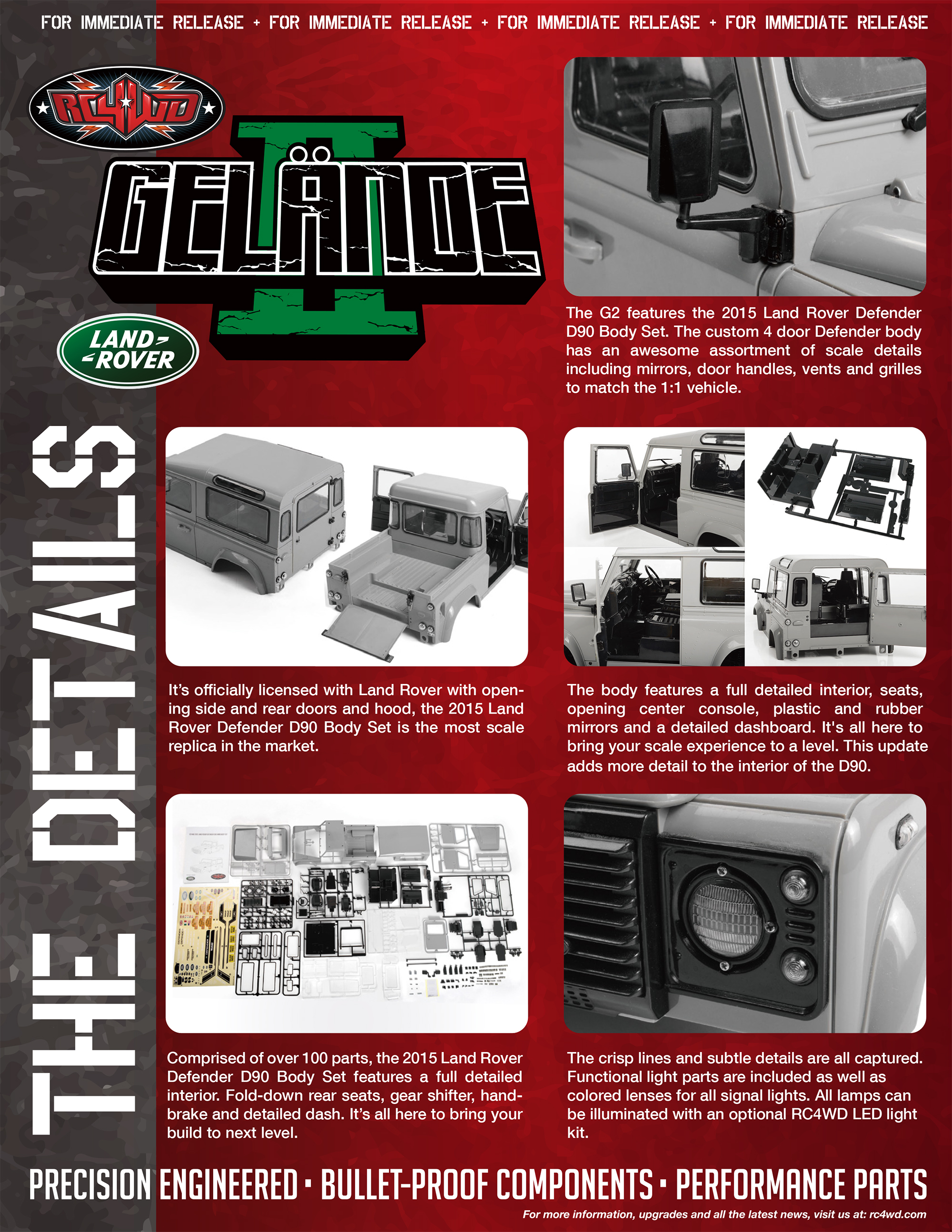

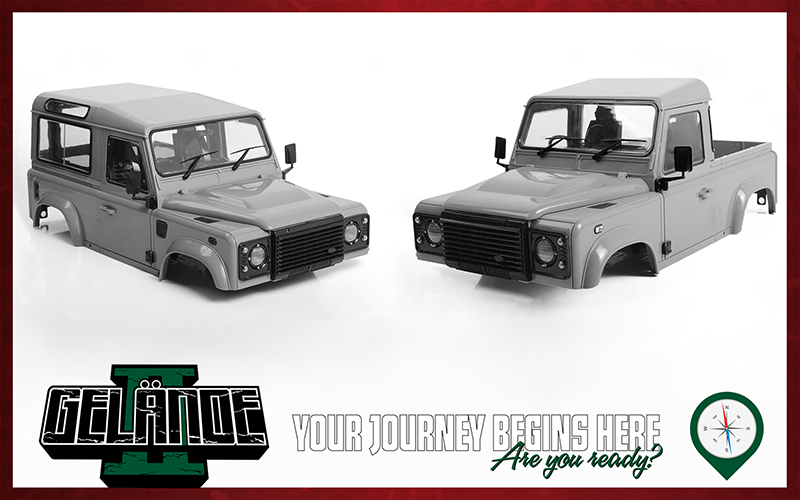

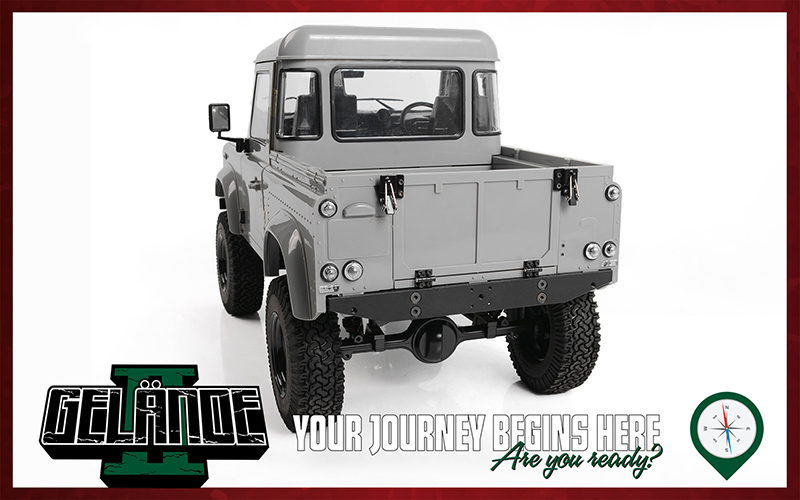

The G2

features the 2015 Land Rover Defender D90 Body Set. The custom 4 door

Defender body has an awesome assortment of scale details including

mirrors, door handles, vents and grilles to match the 1:1 vehicle.

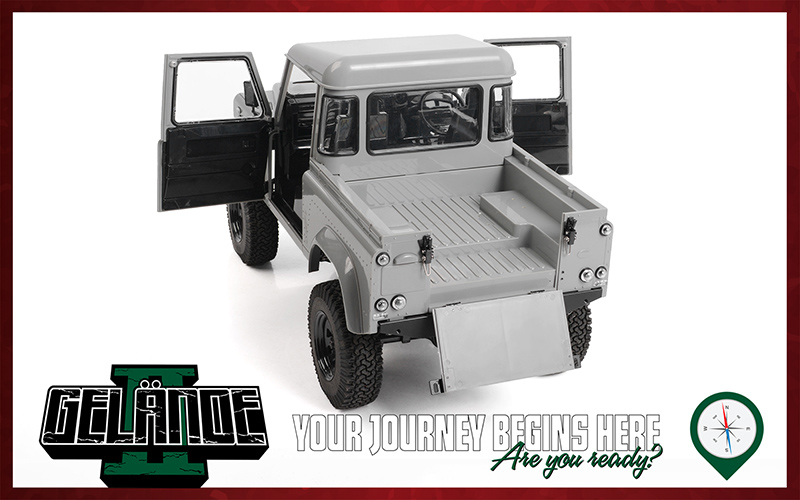

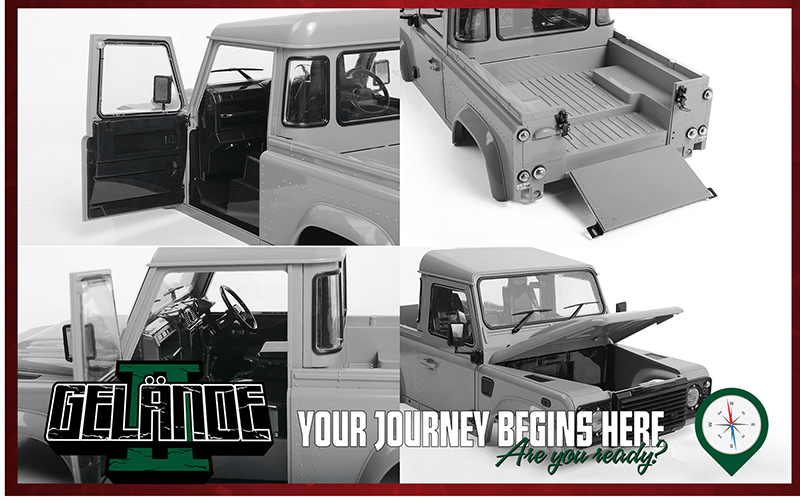

It's

officially licensed with Land Rover with open- ing side and rear doors

and hood, the 2015 Land Rover Defender D90 Body Set is the most scale

replica in the market.

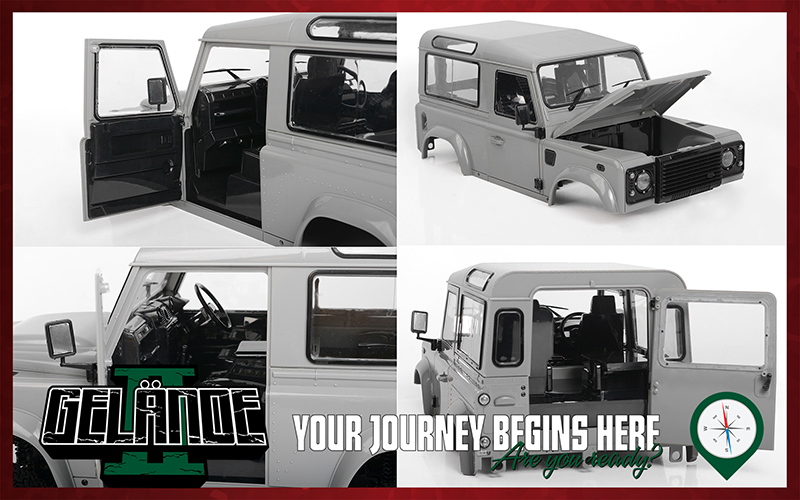

The body features a full

detailed interior, seats, opening center console, plastic and rubber

mirrors and a detailed dashboard. It's all here to bring your scale

experience to a level. This update adds more detail to the interior of

the D90.

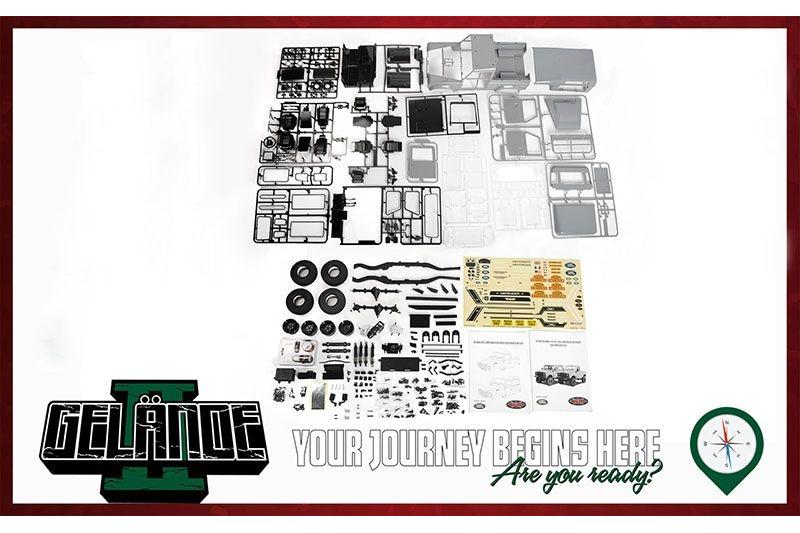

Comprised of over 100 parts, the 2015

Land Rover Defender D90 Body Set features a full detailed interior.

Fold-down rear seats, gear shifter, hand- brake and detailed dash. It’s

all here to bring your build to next level.
The

crisp lines and subtle details are all captured. Functional light parts

are included as well as colored lenses for all signal lights. All lamps

can be illuminated with an optional RC4WD LED light kit.

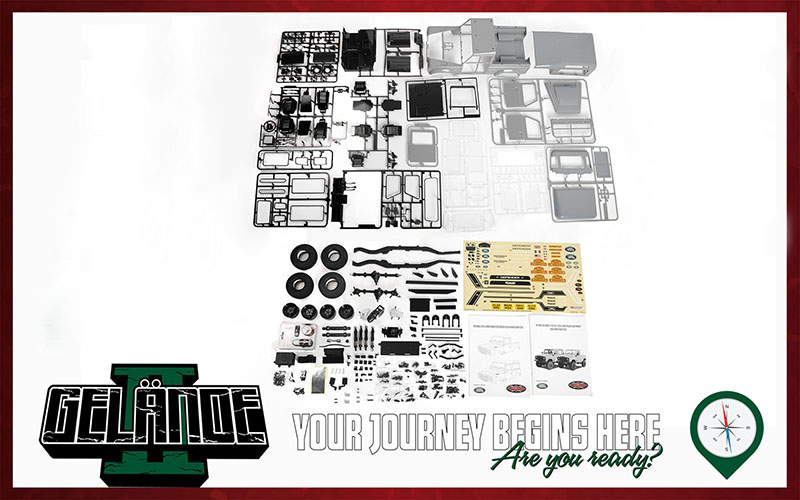

What's Included:

  • 1x RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set


This is a kit that requires building time (appro. 2-3 hours) and electronics
Required to Complete:
Truck Kit

  • Hex Drivers (1.5mm, 2mm, 2.5mm)
  • Long Nose Pliers
  • Blue Thread Lock
  • Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)


Body Kit

  • Modeling / Craft Knife
  • Long Nose Pliers
  • Side Cutters
  • Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
  • Hex Drivers (1.5mm, 2mm)
  • Cross Phillips Screwdriver (Small)


Electronics


Replacement Parts:


Optional Parts:


Metal Rod End Upgrades:


Instruction Manuals:


Press Information:

Items of Interest: (not required for completion)

  • Paint for body
  • Grease and Lubrication (Z-S1199) (Z-S1197)
  • Double Sided Tape for ESC


Notes:

  • While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • Steps marked with an asterisk (*) require thread lock.
  • Use thread lock sparingly.
  • Do not over tighten screws otherwise you may strip the thread.
  • Be sure to shim your axles if needed


Land Rover is a registered trademark of

the Land Rover company. The Land Rover logo is property of Land Rover

and used under license to RC4WD.
